DAO系列

DAO层实现示例 序

项目地址：
https://github.com/FateSolo/DAO-Test

目录：

该系列文章将展示六种不同的DAO层实现方法并总结其不同，本章将首先完成项目总体结构的搭建。

项目环境：

  • Ubuntu 14.04.3
  • Intellij IDEA 15.0.2

1. 项目搭建：

1) 打开IDEA，点击Create New Project，在左侧边栏找到Gradle，并勾选Java和Web，JDK选择1.8。

2) 点击Next，GroupId：com.fatesolo；ArtifactId：DAO-Test。

3) 点击Next，勾选Use auto-import和Create directories for…。

4) 点击Next，直接Finish即完成了项目的创建。

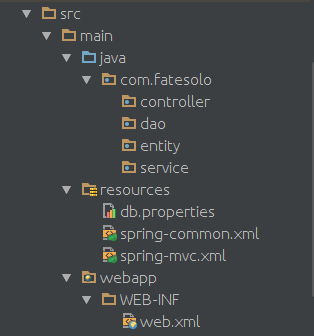

5) 创建包和配置文件，如图：
01

2. 编写web.xml

1) 打开web.xml，编写如下配置：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://java.sun.com/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
    	  http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         version="3.0">

    <!-- Spring -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring-common.xml</param-value>
    </context-param>

    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!-- Spring MVC -->
    <servlet>
        <servlet-name>springMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>

        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-mvc.xml</param-value>
        </init-param>

        <load-on-startup>1</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>springMVC</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!-- 编码过滤器 -->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>

        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>

        <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>

    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

</web-app>

2) 打开build.gradle文件, 在dependencies中，加入相关依赖：

1
compile 'org.springframework:spring-web:4.3.7.RELEASE'
compile 'org.springframework:spring-webmvc:4.3.7.RELEASE'

3. 编写相关配置文件

1) 打开db.properties文件，代码如下：

1
jdbc.url=jdbc:mysql://localhost:3306/dao_test?useUnicode=true&characterEncoding=utf8
jdbc.username=root
jdbc.password=123456

druid.initialSize=5
druid.minIdle=5
druid.maxActive=50

注意数据库名、用户名和密码都更改成你自己的。

2) 打开spring-mvc.xml，编写如下配置：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc
       http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <context:component-scan base-package="com.fatesolo" use-default-filters="false">
        <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <mvc:annotation-driven/>

</beans>

3) 打开spring-common.xml，编写如下配置：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/tx
       http://www.springframework.org/schema/tx/spring-tx.xsd">

    <context:component-scan base-package="com.fatesolo">
        <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <!-- 引入 db.properties 配置文件 -->
    <context:property-placeholder location="classpath:db.properties"/>

    <!-- 数据源, 使用了Druid连接池 -->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
        <!-- 基本属性 url、user、password -->
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>

        <!-- 配置初始化大小、最小、最大 -->
        <property name="initialSize" value="${druid.initialSize}"/>
        <property name="minIdle" value="${druid.minIdle}"/>
        <property name="maxActive" value="${druid.maxActive}"/>

        <!-- 配置获取连接等待超时的时间 -->
        <property name="maxWait" value="60000"/>

        <!-- 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒 -->
        <property name="timeBetweenEvictionRunsMillis" value="60000"/>

        <!-- 配置一个连接在池中最小生存的时间，单位是毫秒 -->
        <property name="minEvictableIdleTimeMillis" value="300000"/>

        <property name="validationQuery" value="SELECT 'x'"/>
        <property name="testWhileIdle" value="true"/>
        <property name="testOnBorrow" value="false"/>
        <property name="testOnReturn" value="false"/>

        <property name="poolPreparedStatements" value="false"/>
    </bean>

    <!-- 配置事务 -->
    <bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <tx:annotation-driven transaction-manager="txManager"/>

</beans>

4) 打开build.gradle，加入如下依赖：

1
compile 'com.alibaba:druid:1.0.28'
compile 'mysql:mysql-connector-java:6.0.5'
compile 'org.springframework:spring-orm:4.3.7.RELEASE'

4. 编写基础代码

1) 这里以对书籍的增删改查为例，首先在MySQL数据库中创建数据库与表，并编写对应的实体类，这里只给出实体类Book的代码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
package com.fatesolo.entity;

public class Book {

    private int id;

    private String name;

    private String author;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getAuthor() {
        return author;
    }

    public void setAuthor(String author) {
        this.author = author;
    }

    @Override
    public String toString() {
        return "Book{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", author='" + author + '\'' +
                '}';
    }

}

2) 创建公共接口BookDao

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
package com.fatesolo.dao;

import com.fatesolo.entity.Book;

import java.util.List;

public interface BookDao {

    /**
     * 查找指定id的书籍
     */
    Book findById(int id);

    /**
     * 查找包含该名字的所有书籍
     */
    List<Book> findByNameContaining(String name);

    /**
     * 保存书籍
     */
    void save(Book book);

}

3) 创建BookService

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
package com.fatesolo.service;

import com.fatesolo.dao.BookDao;
import com.fatesolo.entity.Book;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import javax.annotation.Resource;
import java.util.List;

@Service
@Transactional(rollbackFor = Exception.class)
public class BookService {

    @Resource
    private BookDao bookDao;

    public Book getBookById(int id) {
        return bookDao.findById(id);
    }

    public List<Book> getBooksByName(String name) {
        return bookDao.findByNameContaining(name);
    }

    public boolean addBook(Book book) {
        bookDao.save(book);

        return book.getId() != 0;
    }

}

4) 创建BookController

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
package com.fatesolo.controller;

import com.fatesolo.entity.Book;
import com.fatesolo.service.BookService;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;
import java.util.List;

@RestController
@RequestMapping(path = "/book", produces = "application/json;charset=UTF-8")
public class BookController {

    @Resource
    private BookService bookService;

    @RequestMapping(path = "/{id}", method = RequestMethod.GET)
    public String getBookById(@PathVariable int id) {
        Book book = bookService.getBookById(id);

        return book != null ? book.toString() : "Not Found";
    }

    @RequestMapping(path = "/name/{name}", method = RequestMethod.GET)
    public String getBooksByName(@PathVariable String name) {
        List<Book> books = bookService.getBooksByName(name);

        return books.size() != 0 ? books.toString() : "Not Found";
    }

    @RequestMapping(path = "", method = RequestMethod.POST)
    public String addBook(Book book) {
        return bookService.addBook(book) ? book.toString() : "Failure";
    }

}

至此，项目总体结构搭建完毕。

作者 [@FateSolo]
2017 年 03月 12日
